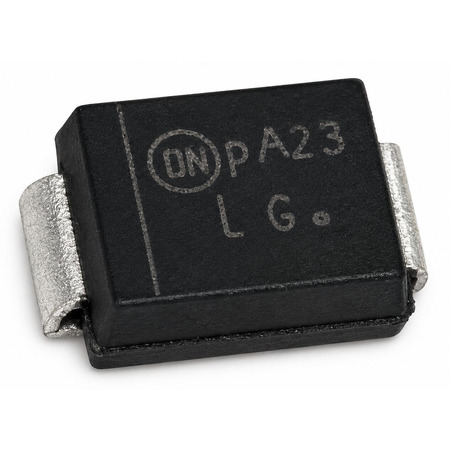

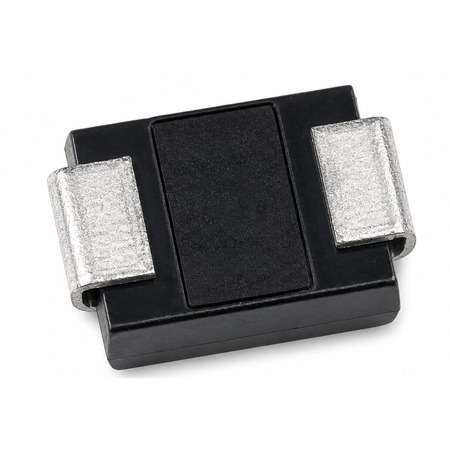

SMD DI TVS 1SMB13AT3G ESD SUPRESSOR DIODE SMT

Features

 Working Peak Reverse Voltage Range − 5.0 V to 170 V
 Standard Zener Breakdown Voltage Range − 6.7 V to 199 V
 Peak Power − 600 W @ 1.0 ms
 ESD Rating of Class 3 (> 16 kV) per Human Body Model
 Maximum Clamp Voltage @ Peak Pulse Current
 Low Leakage < 5.0 A Above 10 V
 UL 497B for Isolated Loop Circuit Protection
 Response Time is Typically < 1.0 ns
 SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
 Pb−Free Packages are Available
